LEOLA DIY Spiral Staircase Space Saver Stairs Loft Helical Staircase

What is spiral staircase



A spiral staircase is a round stair system in which the individual steps connect to a center column, hence forming a complete circle. The diameter of the circle creates the diameter of the staircase.The depth of each step of a spiral stair remains uniform and equal. The handrails move around the perimeter of the spiral curve formed, thus making the stair more iconic.



ComponentsMeasurementMaterialSurface
Stair Beam76*4 – 102*4mm
108*4 – 114*4mm
89*4 – 114*4mm		Carbon Steel
S.S 304/316		Hot dipped galvanization/powder coated
Satin (Brush) Finish/ Mirror Finish
Stair TreadTimber : 40-100mm (thickness)
250-300mm(width)
600-1500mm(length)
Glass: 12mm+1.52pvb+12mm;         10+1.52pvb+10+1.52pvb+10mm;
Carbon Steel: 6-15mm
Marble: 80-100mm thickness
(box shape)		Soli Timber
Laminated Glass
Carbon Steel/Stainless Steel
Stone(marble/slate/granite)		Timber:Smooth (Oil Paint)
Steel:Checkered Plate(Powder Coated)
Stone:Smooth (With Anti-Slip Line)
BalustradeGlass: 12mm tempered glass
Stainless steel rod: 8/10/12mm
Diamter 4mm or 6mm cable railing		Tempered glass
S.S304/S.S316		Glass: Clear/European grey/Ultra clear glass
Steel:Brush Finish/ Mirror Finish
All dimensions can be adjusted according to customer’s jobsite/plan
Category:
Product Specification



  • Center Column Material:Carbon Steel /Stainless Steel 304/Stainless Steel 316
  • Center Column Dimension: 76*4mm or can be customized
  • Outer Sleeve Material:Carbon Steel /Stainless Steel 304/Stainless Steel 316
  • Outer Sleeve Dimension:114*4mm or can be customized
  • Step Options:Steel/Timber/Stone/Laminated Glass

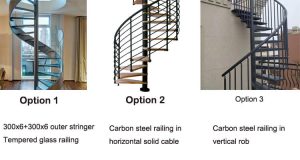

  • Balustrade Options:Glass Railing/Cable Railing/Rod Bar Railing
How to measure the staircase





Installation Step

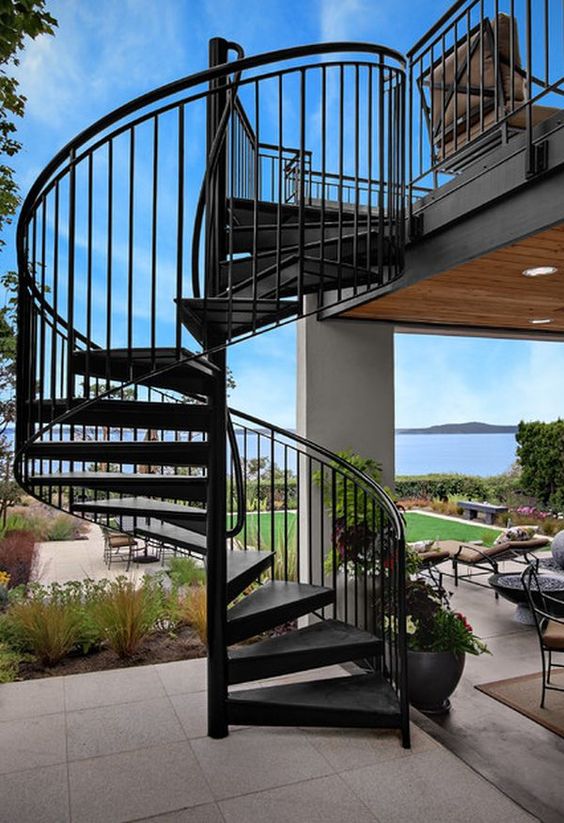

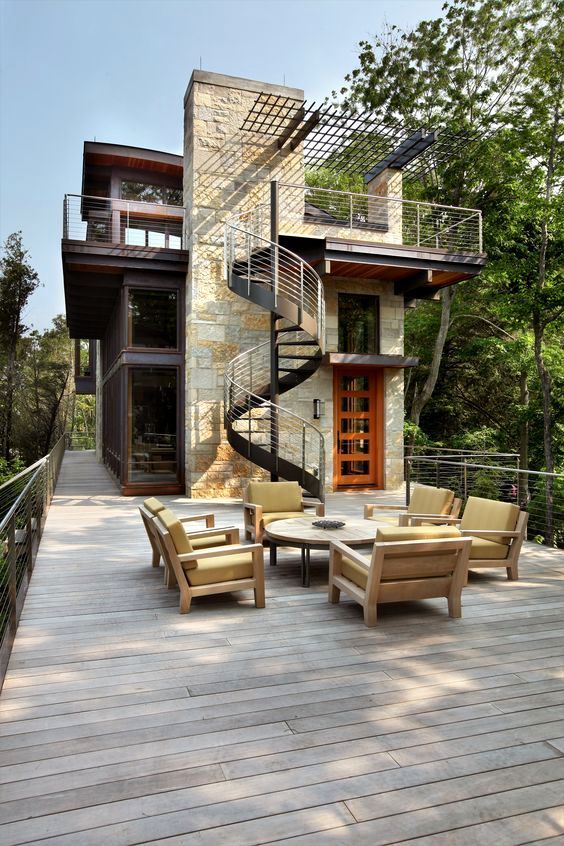

Our Projects

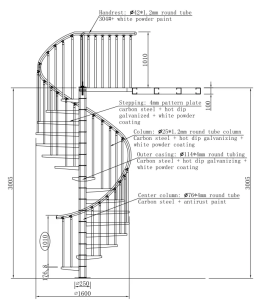

Shop Drawing



As the spiral staircase is customized as your jobsite dimensions. before production, we will send you the  shop drawing for checking in. when all the dimensions are good, we will start production immediately.

Our service



  1. Free Design: Once the order confirmed and deposit received ,we will make a detailed shop drawing for you to confirm.
  2. On Time Delivery: 100% on time delivery after order confirmed.
  3. Price Match: Our products well match any genuine like for the quote.
  4. After-sales services: we could go to your site for installation or instruction if it is required. If any quality problems was caused by our side, we will compensate the amount or make the new ones for free.
