Product Specification
- Base Shoe Material: Aluminum
- Glass:Tempered Glass
- Handrail:Stainless Steel / Timber /PVC

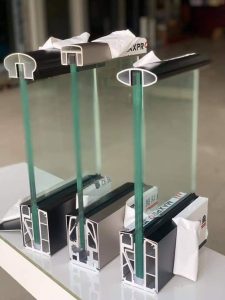

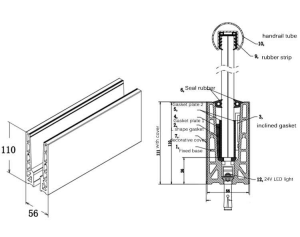

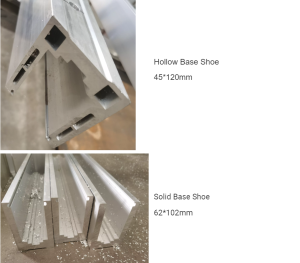

Details Image

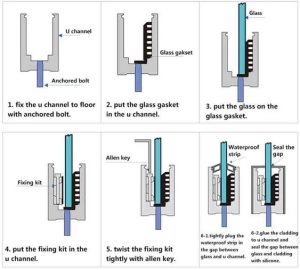

Installation steps

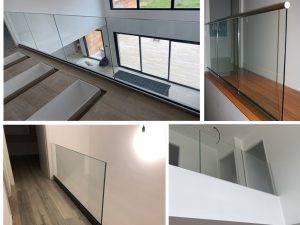

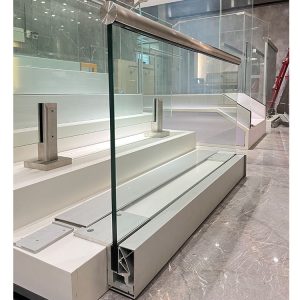

Our Project
U Channel Glass Railing
LEOLA Exterior Outdoor Terrace Deck Safety Tempered Glass Railing With Aluminum U Channel Base Shoes
What is U channel glass railing ?
Introducing the u channel glass system, designed to offer a sleek finish for glass balustrades, stair railings, and shower enclosures. The aluminum channel for glass is engineered for durability, ensuring a secure fit and long-lasting performance.
| Product Name | U Channel Base | Tempered Glass | Handrail |
|
Dimensions Detail | 102*62mm （10-13mm glass） 102*67mm （14-18mm glass） 102*70.5mm （19-20mm glass） | 8/10/12/15/19mm single layer glass 6+1.14pvb+6mm 8+1.52pvb+8mm 10+1.52pvb+10mm Laminated glass | Diameter
50.8mm/42.4mm/38mm
40*40mm/ 50*50mm |
| Material | Aluminum | Clear Glass Ultra Glass Frosted Glass | Stainless / Timber/PVC |
| Surface Finish | Anodizing /S.S Cladding | Polishing Edges | Brushed / Mirror Powder Coated |
| Mounted | Floor mounted /Side mounted Embedded | //// | Top mounted Side mounted |
